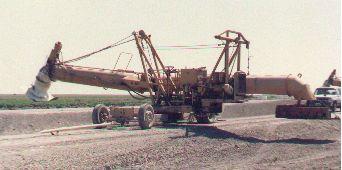

Highly Efficient Axial Flow Impeller Design
Can Be Rotated Either Right or Left Hand for Pumping
Hydraulic Cylinder Lifts for Piping
Submerged Impeller Design - No Priming Required
Pump shaft in enclosed oil tube - Can be run dry without damage
Variable Displacement Sundstrand Hydraulic Drive Allows for Precise control of pump speed.
GMC 8V-92 Diesel Engine (Cat, John Deere, Or Cummins also available)
Self Propelled hydraulic ground drive allows for short distance travel without tow vehicle
Equipped with Dissipator Pan on Discharge end to reduce erosion on discharge end

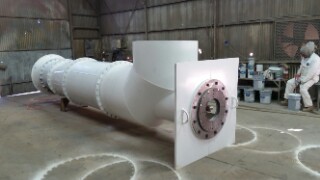

Vertical Pump Section allows for better submergence
Capacity of 24,000 GPM @ 12 ft. Vertical Lift
Capacities from 500 to 20,000 g.p.m.

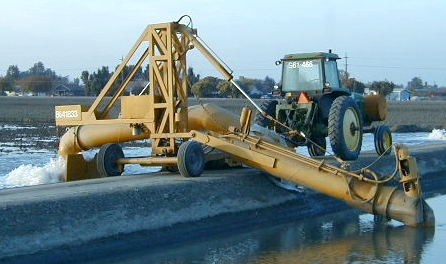

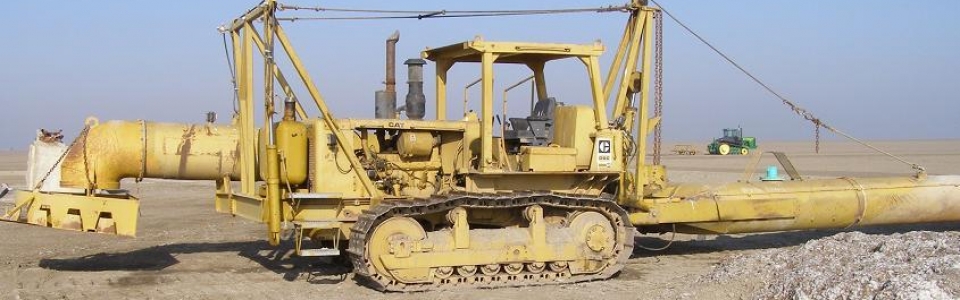

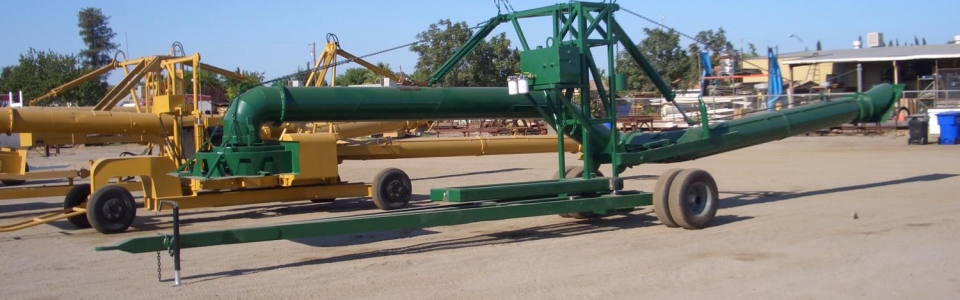

Self-Contained Turntable Trailer Units, 2 Wheel Trailer Units, 3-pt. Hitch Tractoor Units, and Custom Mounted Units for Track-Layers or Wheel Tractors.
- Highly Efficient Axial Flow Impeller Design
- Can Be Rotated Either Right or Left Hand for Pumping
- Designed for use with 1000 RPM PTO
- Submerged Impeller Design- No Priming Required
- Pump shaft in enclosed oil tube - Can be run dry without damage
Three Standard Sizes Available
| Pipe Size | Flow Capacity | Max. Head | PTO HP Req. |
| 16 inch | 4500 GPM | 10-12 ft | 25 hp |
| 18 inch | 6500 GPM | 10-12 ft | 35 hp |
| 24 inch | 12000 GPM | 10-12 ft | 70 hp |
